Renogy 400 Watt 12 Volt Premium 4 Pcs 100W Panel+40A MPPT Charge Controller+ Bluetooth Module Fuse+ Mounting Z Brackets+Adaptor Kit +Tray Cables Set, 400W, Grid 12V Solar Power System

The Renogy 400W 12V Premium Kit is easy for you to install, and it is the most economical choice for the off-grid adventurer. Renogy Solar Kit comes with solar panels, charge controllers, and needed electrical wiring, fuses, and monitoring typically required for an off-grid installation, making it ideal for both off-grid and mobile solar power applications. The Premium Kit will produce an average of 1.6-2.5kWh of electricity per day (depending on sun availability). The 4 x 100W solar panels don't take up much roof space, but their energy can offset small and medium-size loads such as lighting, television, and coffee maker.The Premium Kit can build a reliable and environmentally friendly power supply, perfect for all rooftops, RVs, boats, or campers. It can also be installed in a ground mount system as a power supply for outdoor appliances, emergencies, and a stand-alone power system.

• EfficientMonocrystalline panels come with high-efficiency cells that help increase module efficiency. Module efficiency: Eclipse 100W Monocrystalline: 18.35%Bypass diodes minimize power drop caused by shade and ensure excellent performance in low-light environmentsRover charge controller brings peak conversion efficiency of 98%, high Tracking efficiency of 99%
• ReliableExtra thick anti-reflective, high transparency, low iron-tempered glass with enhanced stiffness and impact resistanceEL tested solar modules; no hot-spot heating guaranteedCorrosion-resistant aluminum frame for extended outdoor use, allowing the panels to last for decadesTPT back sheet ensures smooth performance over a long period of timeIP65 rated junction box provides complete protection against environmental particles and low pressure water jets
• Intuitive4-Stage battery charging process for a rapid, efficient, and safe battery chargingRS-232 port compatible for extra featuresCompatible with Renogy Bluetooth Module and Renogy BT APP for remote monitoring
• SafePre-drilled holes on the back of the panel allow for fast mounting and securingComes equipped with an MC4 Inline fuse and ANL fuse components for protecting your charge controller and battery

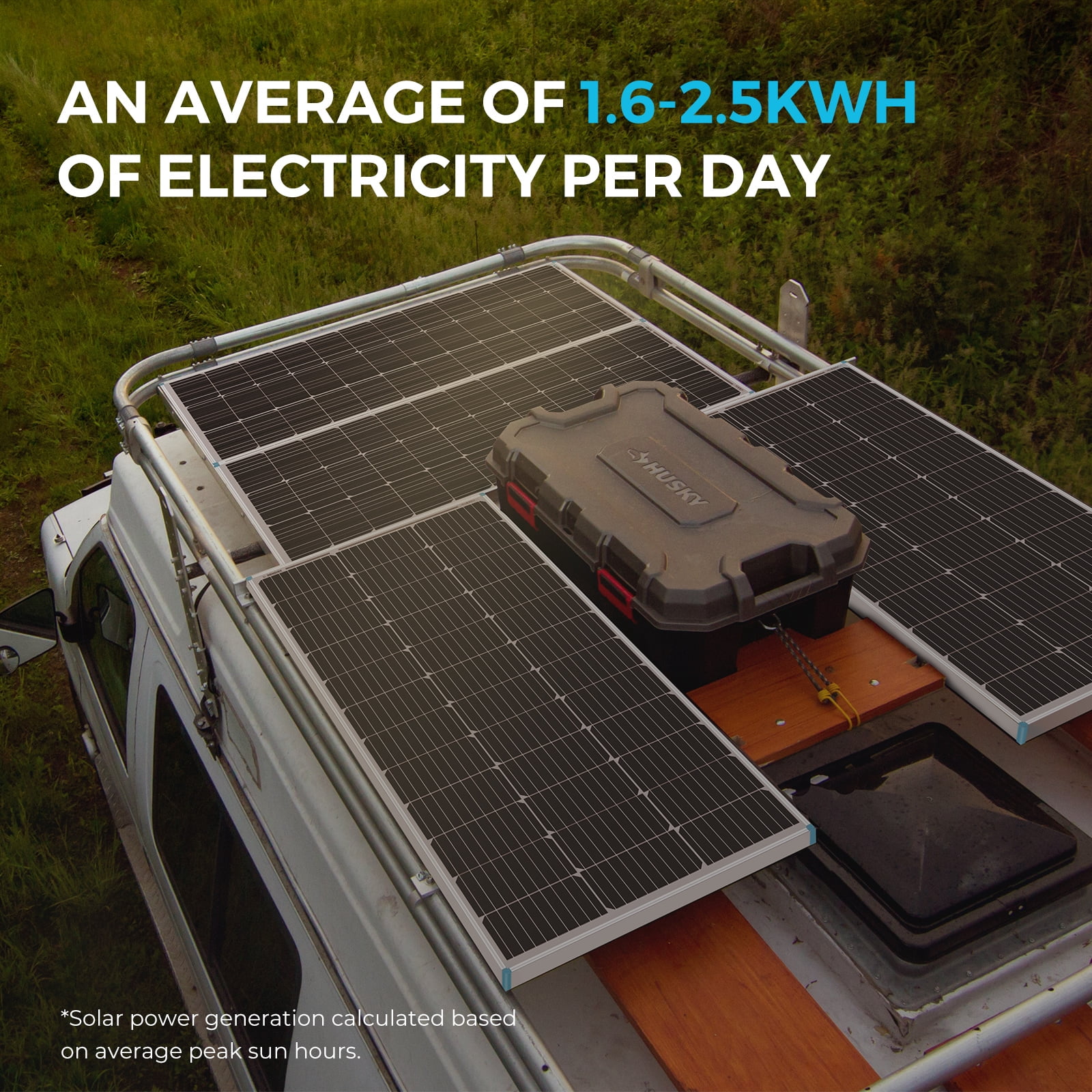

• 【Efficient Performance】The Premium Kit will produce an average of 1.6-2.5kWh of electricity per day (depending on sun availability). By bypassing the shaded cells with poor performance, the bypass diode minimizes the power drop caused by the shadow to ensure excellent performance in a low-light environment.

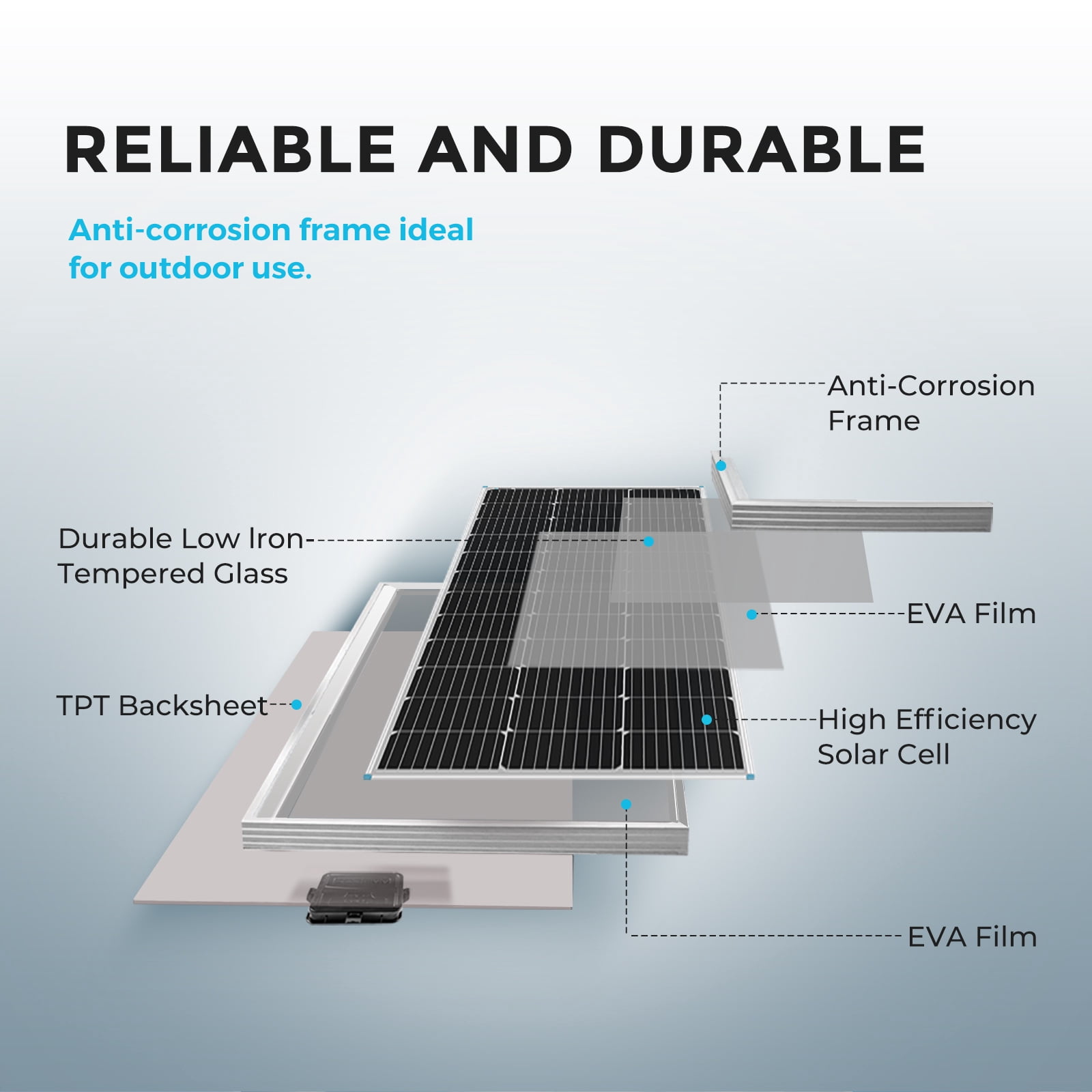

  【Solid Quality】Advanced encapsulation material with multi-layered sheet laminations to protect cells from physical damage or distortion, improving cell performance and providing a long service life. Corrosion-resistant aluminum frame ideal for outdoor use. TPT back sheet dissipates excess heat, ensuring smooth output performance. EL tested; 5-year material and workmanship warranty.

  【Ready to Install】Pre-drilled holes on the back frame allow quick installation. The kit has a complete set of accessories and is equipped with an In-line fuse and ANL fuse components to offer more protection.

  【Stay Connected】Easily monitor by your phone. The BT1 Bluetooth module can pair with Renogy DC Home App and transmits system operation data directly to your phone, the Bluetooth signal available up to 82ft.

  【Full System Protection】Meant to safeguard your system, the self-diagnostic capability can assess and protect against reverse polarity, battery overcharging, battery over-discharging, overload, short-circuiting, and reverse current. Equipped with an In-line fuse and ANL fuse components, devised to add overcurrent protection on your charge controller and battery bank.




  Speicifications：

  RENOGY 100W MONOCRYSTALLINE SOLAR PANEL

  Maximum Power at STC: 100W

  Open-Circuit Voltage (Voc): 24.3V

  Short-Circuit Current (Isc): 5.21V

  Optimum Operating Voltage (Vmp): 20.4V

  Optimum Operating Current (Imp): 4.91V

  Dimensions: 41.8 x 20.9 x 1.38 inches

  Maximum System Voltage: 600VDC

  Weight: 14.1 lbs




  RENOGY 10A In-Line FUSE HOLDER W/FUSE

  Rated Current: 10A

  Rated Voltage: 1000 V DC

  Contact Material: Copper, Silver Plated

  Replaceable Fuse: Cylindrical PV Fuse (10x38mm)

  Safety Class: II

  Degree of Protection: IP2*/IP67




  BT-1 BLUETOOTH MODULE

  Input Voltage: 5V

  Communication Range: ≤82ft

  Compatible With: All Renogy Controllers with RJ12 port

  Operating Temperature: -20℃~85℃（-4°F to 185°F）




  Solar Y Branch Connectors

  Withstanding Voltage: 1000V DC(TUV), 600V(UL)

  Temperature: -40°F to +194°F

  Protection Class: Class II

  Protection Degree: IP67, mated

  Rated Current: 50A

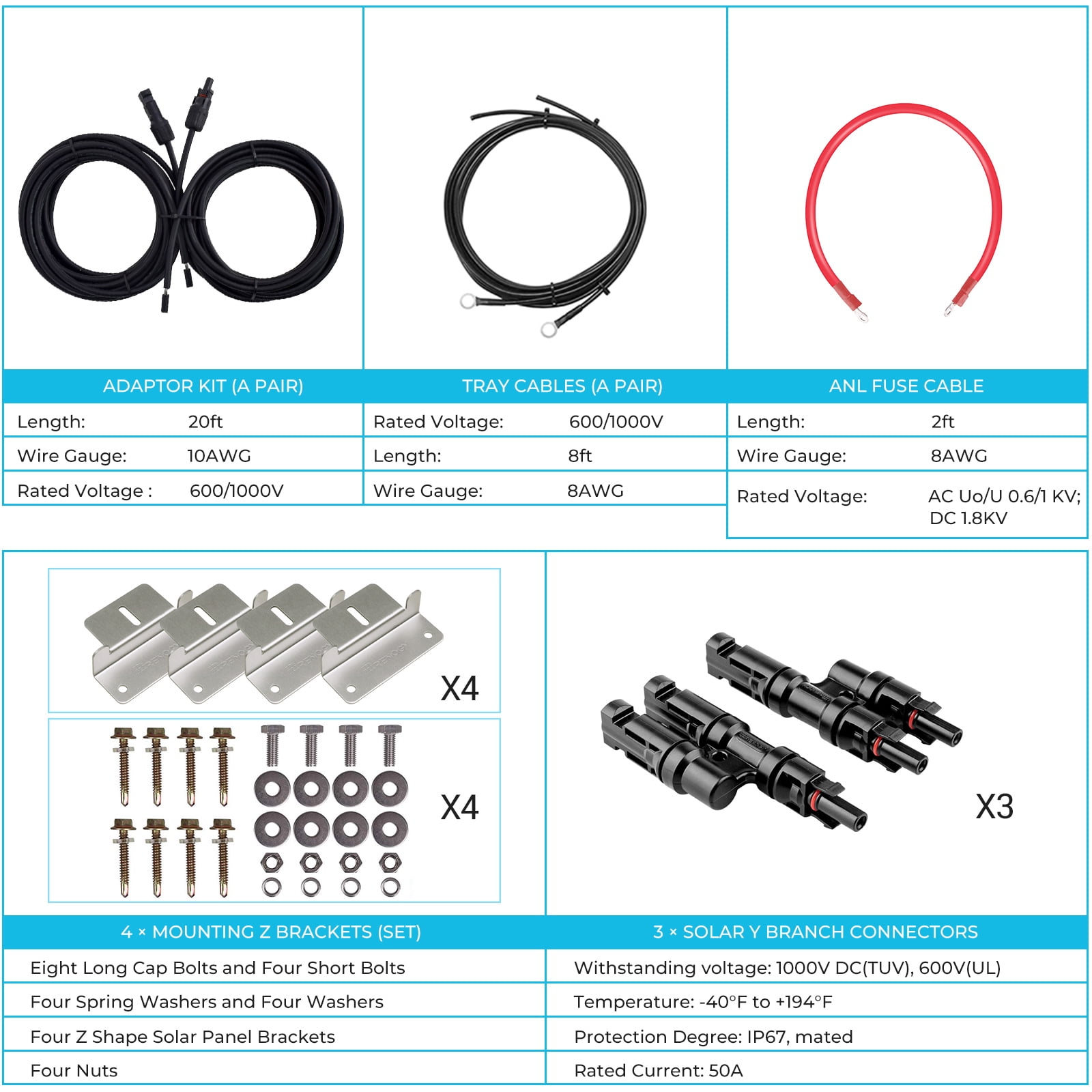

  Package Includes:

  4 x 100W Mono Solar Panel

  1 x Rover Li 40A MPPT Charge Controller

  1 x 20ft 10AWG AK

  1 x 2ft 8AWG Fuse Cable

  1 x 8ft 8AWG Tray Cable

  4 x Mounting Z Brackets (Set)
  1 x BT-1 Bluetooth Module

  1 x 10A In-line Fuse and 40A ANL Fuse

  3 x Solar Y Branch Connectors MMF+FFM Pair
